Monitor

Standard VGA color monitor
Support 800x600 resolution LCD
Analog signal input monitor

Color

16 foreground and 16 background colors

Frequency

31.50KHz or 48.1KHz horizontal frequency

Refresh

70Hz or 72Hz vertical retrace

Format

Multiple display formats

Data Lines

24 x 80/132, 25 x 80/132
On Screen, 1st is status line and 44th is label line
42 x 80/132, 43 x 80/132
On Screen, 1st is status line, and 44th is label line

Border

16 colors

Character Font

Native Mode Font
PC Standard
PC Multinational
Standard ASCII
Standard ANSI
Graphics Font
Four banks down loadable soft font of 128 characters

Character Attributes

Blink, reverse, underline, High light/Dim, Invisible and any combination

Cursor Attributes

Block or underline, blink, steady or off, 16 colors

Line Attributes

Double height, double width, combination programmable

Emultaions

WY-120/60, 325, 50+
TV1910+, TV1925
PC TERM
PCG ALPHA, ADDS A2
VT52, VT100, VT200
Console ANSI

Two Serial Port Connector Type

One for host on the 25-pin female connector with RS-232C
One for serial Printer on the 9-pin male connector with RS-232C

Baud Rates

75 to 460Kbps

Format

7 or 8 data bits with or without parity
1 or 2 stop bits

Mode

Full duplex, Half duplex, Half block and block

Protocol

Software Handshake: Xon / Xoff, Xpc, Hardware Handshake DTR pin
One Printer port connector type parallel port on the 25-pin female connector

One Printer Port Connector

Parallel port on the 25-pin female connector

Interface

Enhanced PC / AT KB interface

Type

Enhanced PC / AT KB 101/102 keys

Function Key

12 programmable function keys

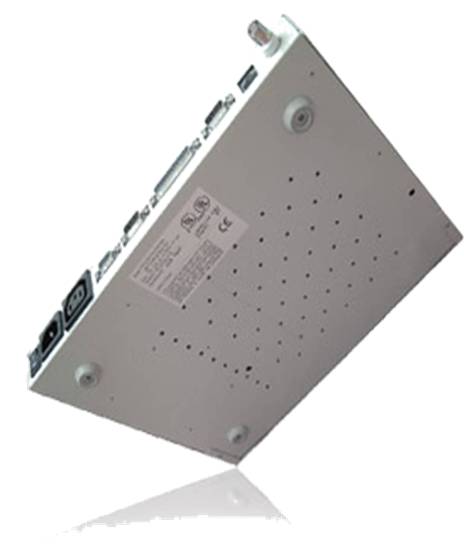

Terminal Box

33mm(W) x 315mm(H) x 252mm(L)

1 Terminal Box / Inner Box

67mm(W) x 362mm(H) x 344mm(L)

5 Inner Box / Carton

382mm(W) x 364mm(H) x 358mm(L)

Inner Box

N.W. 2.4Kgs
G.W. 3.0Kgs

Carton

N.W. 2.4Kgs
G.W. 3.0Kgs

Regulatory Compliance

Emissions FCC Class A, UL, CE, C-TICK

Power Requirement

98 – 264 VAC at 47 – 63Hz
